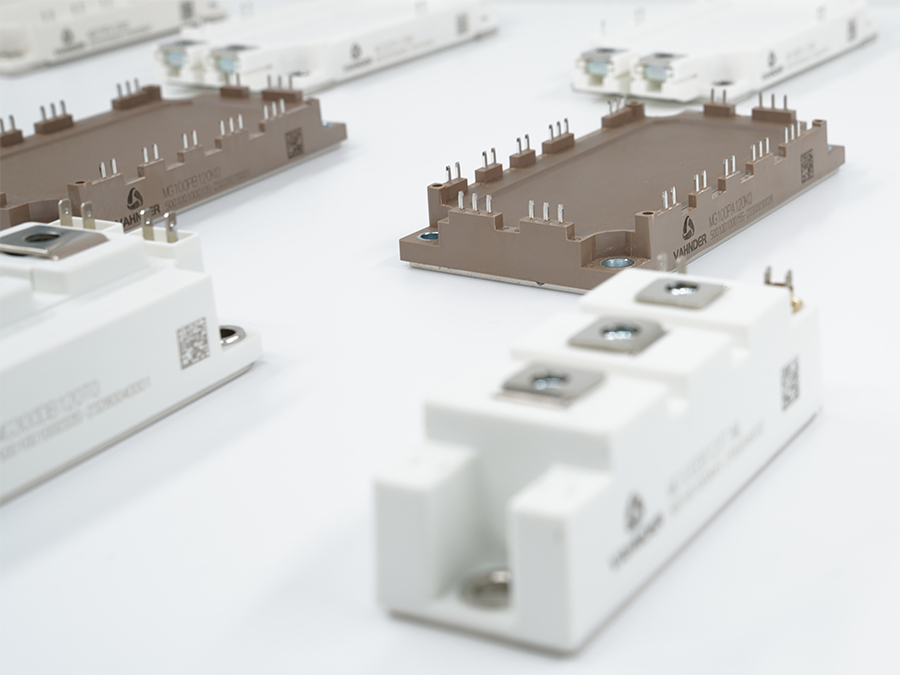

IGBT modules are of great significance in the field of power electronics, as they are a composite power semiconductor device that integrates the advantages of transistors and MOS transistors. Due to its advantages such as high input impedance, low conduction voltage drop, low switching loss, fast shutdown, high reliability, and long service life, it is widely used in fields such as smart grids, aerospace, new energy vehicles, communication, power electronics, induction heating, etc.
The basic principle of IGBT module is to use a combination of BJT and MOS to achieve the function of inverter on a semiconductor chip. The IGBT module has symmetry, allowing it to conduct in both positive and negative directions, thus enabling four quadrant operation. At the same time, the IGBT module also has lower capacitance and inductance, making it suitable for high-frequency switching.
The main application of IGBT modules in the field of smart grids is to convert direct current to alternating current, thereby meeting the needs of various electronic devices. In the field of new energy vehicles, IGBT modules are used to achieve efficient charging of battery packs and driving of electric motors. In the field of power electronics, IGBT modules are used as key components such as rectifiers and inverters to achieve stable operation of power systems and improve power quality.
Compared to other modules, IGBT modules have higher operating frequencies and lower conduction losses, thus having higher efficiency. In addition, the IGBT module also has strong withstand voltage capability and large current capacity, making it suitable for various complex application scenarios.
Although IGBT modules have many advantages, there are also some challenges in practical applications, such as thermal management, safety, and reliability. To address these challenges, corresponding measures need to be taken, such as optimizing chip design, strengthening heat dissipation measures, and improving production quality.
In the future, with the rapid development of new energy vehicles, smart grids, new energy and other fields, IGBT modules will be more widely used. Meanwhile, with the continuous progress of technology, IGBT modules will develop towards a more efficient, reliable, and intelligent direction. Therefore, IGBT modules have important application prospects and development trends in the future.
In short, IGBT modules, as an important power electronic device, have broad application prospects and important significance.
