The resistor made of stainless steel wire is placed in an aluminum case with a larger surface which allows good heat dissipation. The space between the resistor and the case is filled with a isolation powder which have high thermal conductivity and electrical insulation. Resistors manufactured using this technology can be used as braking resistors or capacitor discharge resistors, load tester, wind power plants, hybrid vehicles and other industrial applications.

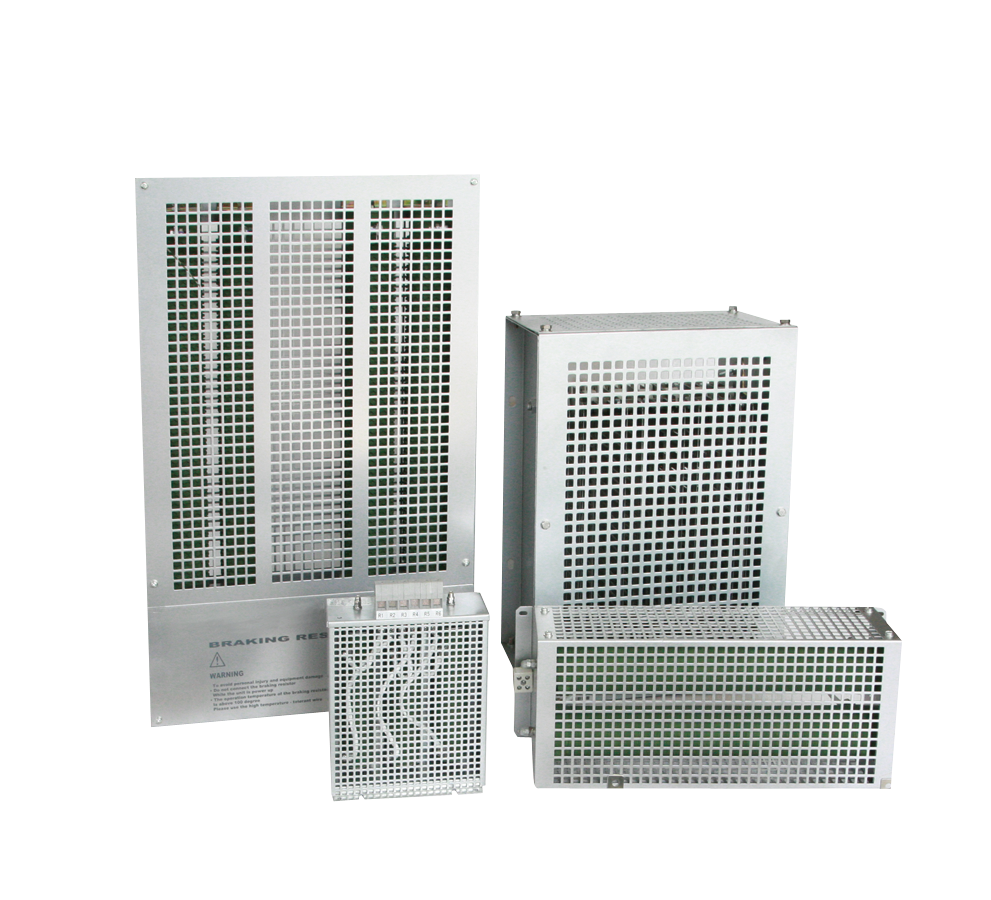

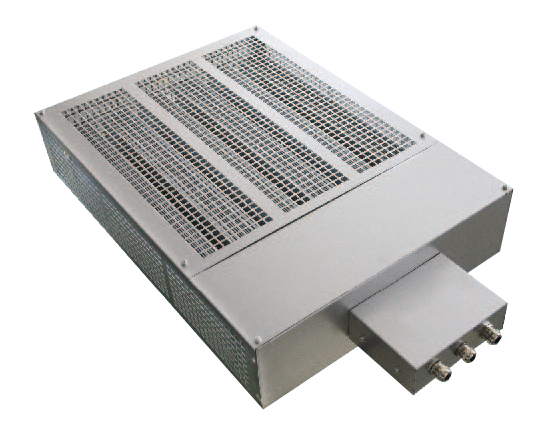

Aluminium Braking Resistors - RXLG
Resistance value and range of variation: 1Ω≤R±5% (J) 1Ω＞R±10% (K)
Temperature coefficient: R＞20Ω, ±260PPM/℃ R≤20Ω, ±400PPM/℃ Tested at -25℃~200℃
Rated load: Surface temperature ≤375℃ Placed on a 300*300*3mm aluminum plate
Short-time overload: △R≤±(2%R＋0.05Ω) No abnormality 10 times rated voltage under the same environment, 5 seconds
Insulation resistance: R≥100MΩ 1min No abnormality DC 1000V, the insulation resistance between the solder piece and the shell must be greater than or equal to 100MΩ
Withstand voltage: △R≤±(0.1%R＋0.05Ω) No abnormality No damage to the solder piece and the shell AC 3000V 5s
Terminal strength: No looseness No abnormality 100N force applied to the lead-out direction of the solder pad for 30 seconds
Vibration resistance: No visible damage, ΔR≤±(0.1%R＋0.05Ω) f; 10-55Hz a=1.5g X Y Z 2h each
Heat resistance: No obvious discoloration or damage except for the terminals, clear markings; heated to 350±5 ℃, 120± 5 minutes
Thermal shock: ΔR≤±(2%R＋0.05Ω) No abnormalities; rated voltage 30 minutes; Room temperature, 8-12 seconds; placed in a -40±2℃ environment for 15+5 minutes, then placed at room temperature for 2 hours
Moisture resistance: No visible damage, clear markings, ΔR≤±(3%R＋0.05Ω) Insulation resistance ≥R≥25MΩ DC voltage 100V 40±2℃ Relative humidity 90-95%, 60 minutes on, 30 minutes off, continuous operation for 500+24 hours. Load life; no visible damage, clear markings, △R≤±(5%R＋0.05Ω). Placed on a 300*300*3mm aluminum plate at 20±7℃, rated DC voltage, 90 minutes on, 30 minutes off, cycle for 500+24 hours.
Advantages
Compact sizing, option to use without a cabinet,
High protection degree against humidity, dust, solvents and water splash
Excellent mechanical impact and vibration withstand
Efficient design to ensure long life time with an internal structure for high heat transmission and external structure facilitating heat transmission
Application Areas
Elevators
Escalators
Cranes (Tower, Gantry, Travelling Cranes)
Work Platforms, Construction Hoists, etc.
Mines (in wagons, for mixing, stone crunching, etc.)
Automation (cable, wire, and some textile factories)
