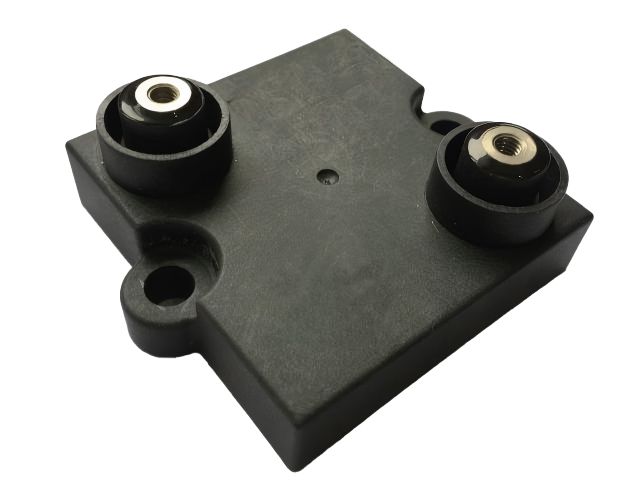

RHP150-B power type thick film resistor

• 0.5% Tolerance available

• High power rating

• Non inductive

• Wide ohmic value range

• Easy mounting

• 3 Different resistors in 1 module available

• 4 Terminals available

RHP250 High power thick film resistors

• Non-inductive,winde resistance range

• High power  · High voltage withstanding 6KV

• Contact terminal :M4 screw,Max.torque 2Nm

• Resistor inatallation: M6 screw, Max.torque 3Nm

• Inductance<80nH

RHP600 power thick film resistors

•


  Non-inductive,winde resistance range

• High power

• High voltage withstanding 6KV

• Contact terminal: M4 screw,Max.torque 2Nm

• Resistor inatallation: M4 screw,Max.torque 2Nm

• Inductance<80nH
