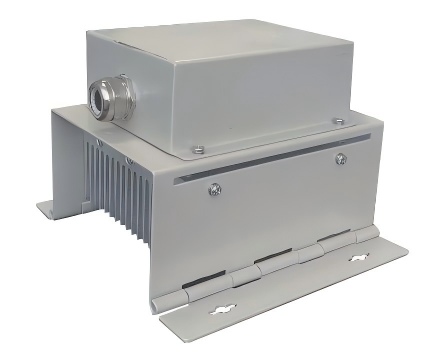

HVT spike voltage absorber is an innovative product that protects the insulation of motor stator windings and bearings. HVT is installed in parallel at the power input end of the motor, which can effectively absorb the peak voltage and bearing current generated by the frequency converter on the motor, greatly.

Compared with traditional du/dt filters or sine wave filters, HVT has the advantages of 1. Parallel installation with electric motor, simple and easy to implement; 2. No voltage drop, no reduction in torque, and no impact on the control of the motor by the frequency converter; 3. Small size, light weight, high cost-effectiveness, especially for high-power motors, the advantages are more obvious; 4. Convenient selection, independent of motor speed and carrier frequency, without the need to match with specific power motors; 5. Intelligent control, automatically adjusts the absorbed power according to the carrier frequency and cable length to ensure optimal performance; 6. Built in insurance, automatically disengages from the system in case of malfunction, and displays the fault status on the panel; 7. Fully sealed design, suitable for harsh industrial site environments.

Product Features

• Solve the problem of frequency converter burning out themotor stator winding;

• Real time detection of peak voltage and rapid absorption of peaks;

• Intelligent control of energy absorption valves to maximize absorption capacity.;

• IGBT technology controls the absorption of peak voltage energy, ensuring clean and thorough absorption of peak;

• The bearing current absorption circuit greatly extends;

• The intelligent control module does not require an external power supply to operate;

• Display the work status panel to keep track of the work status at any time;

• Parallel installation with motor, simple wiring.
