IGBT Module MG450DB120T0
IGBT Module MG450DB120T0
MG450DB120T0
MG450DB120T0
IGBT Module MG450DB120T0

  • Low saturation conduction voltage drop (Vce(sat));

  • Low switching loss (Ets);

  • High breakdown voltage (BVces);

  • High short circuit current tolerance (Icsc);

  • Electrical parameter repeatability and consistency;

  • High reliability.

DATASHEET INQUIRY
SPECIFICATIONS
Device ModelIGBT Module MG450DB120T0
Chip CharacteristicsLow loss, fast
VCES Voltage (v)1200
IC @ Tc=100°C450
Eon+Eoff @Tj=25 ℃typ(V)1.55
Rth(J-C) (K/W)67@Rg=5.5 Ω
Package62mm
ConfigurationHalf Bridge w/o Rectifier

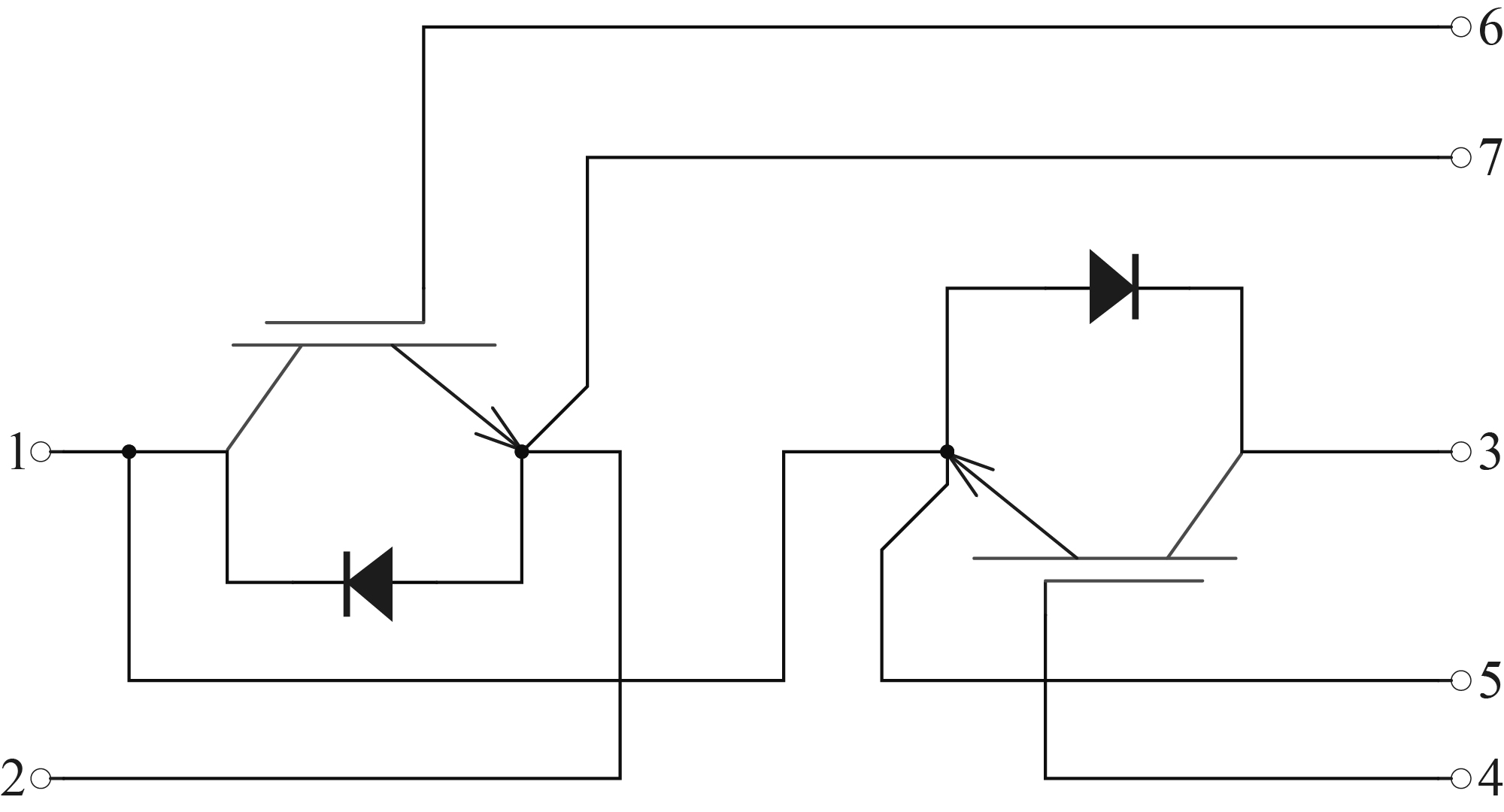

Circuit
N.G (g)329.0
ApplicationMotor Drives，Servo Drives
