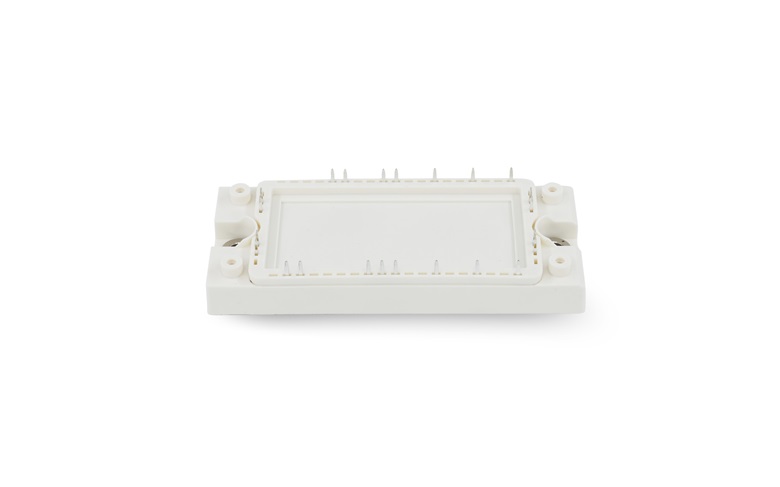

| Device Model | IGBT Module MG050PA120N0 |
| Chip Characteristics | Low loss, fast |
| VCES Voltage (v) | 1200 |
| IC @ Tc=100°C | 50 |
| Eon+Eoff @Tj=25 ℃typ(V) | 2.31 |
| Rth(J-C) (K/W) | 9.76@Rg=15Ω |
| Package | EconoPIM2 |
| Configuration | PIM with Brake |

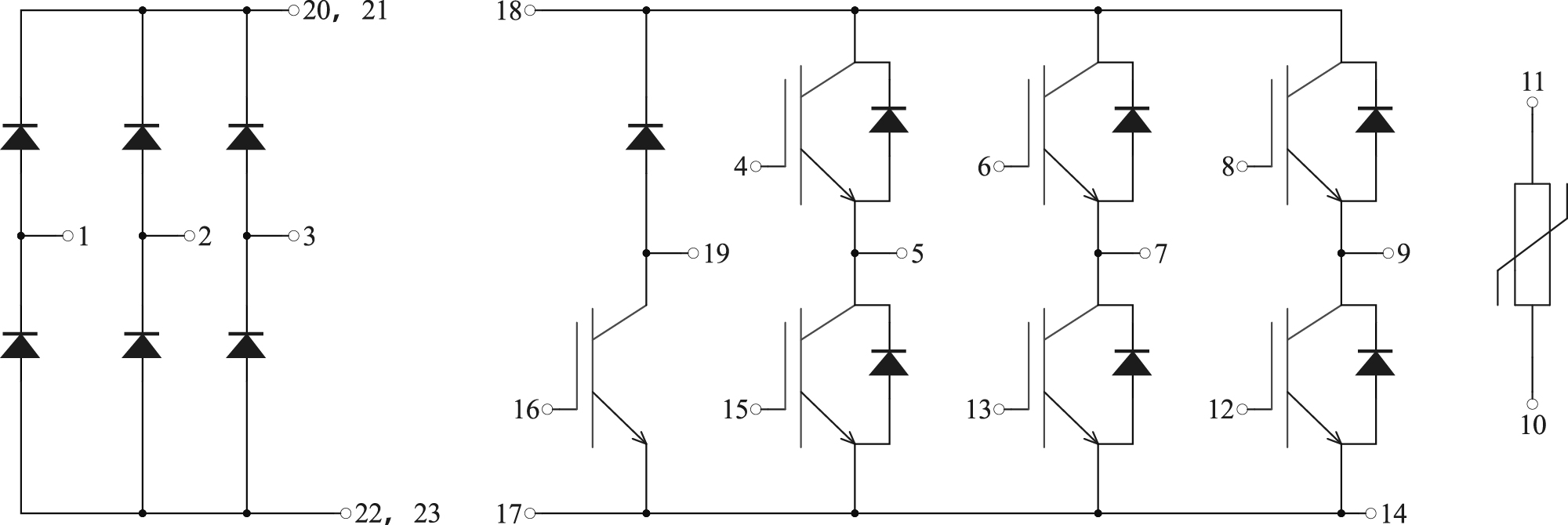

| Circuit |  |
| N.G (g) | 176.7 |
| Application | Motor Drives，Servo Drives |
