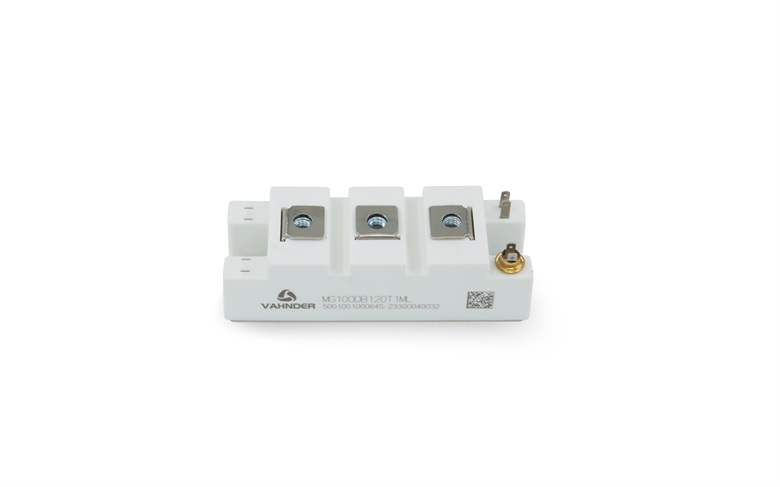

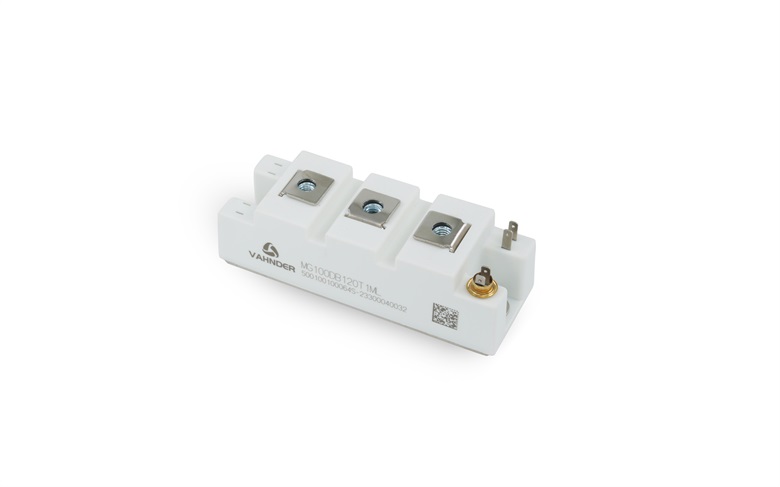

IGBT Module MG100DB120T1ML
IGBT Module MG100DB120T1ML
IGBT Module MG100DB120T1ML
MG100DB-3
MG100DB-1
MG100DB-2
IGBT Module MG100DB120T1ML

  • Low saturation conduction voltage drop (Vce(sat));

  • Low switching loss (Ets);

  • High breakdown voltage (BVces);

  • High short circuit current tolerance (Icsc);

  • Electrical parameter repeatability and consistency;

  • High reliability.

DATASHEET INQUIRY
SPECIFICATIONS
Device ModelIGBT Module MG100DB120T1ML
Chip CharacteristicsLow loss, fast
VCES Voltage (v)1200
IC @ Tc=100°C100
Eon+Eoff @Tj=25 ℃typ(V)2.5
Rth(J-C) (K/W)15.1@Rg=10Ω
Package34mm
ConfigurationHalf Bridge w/o Rectifier

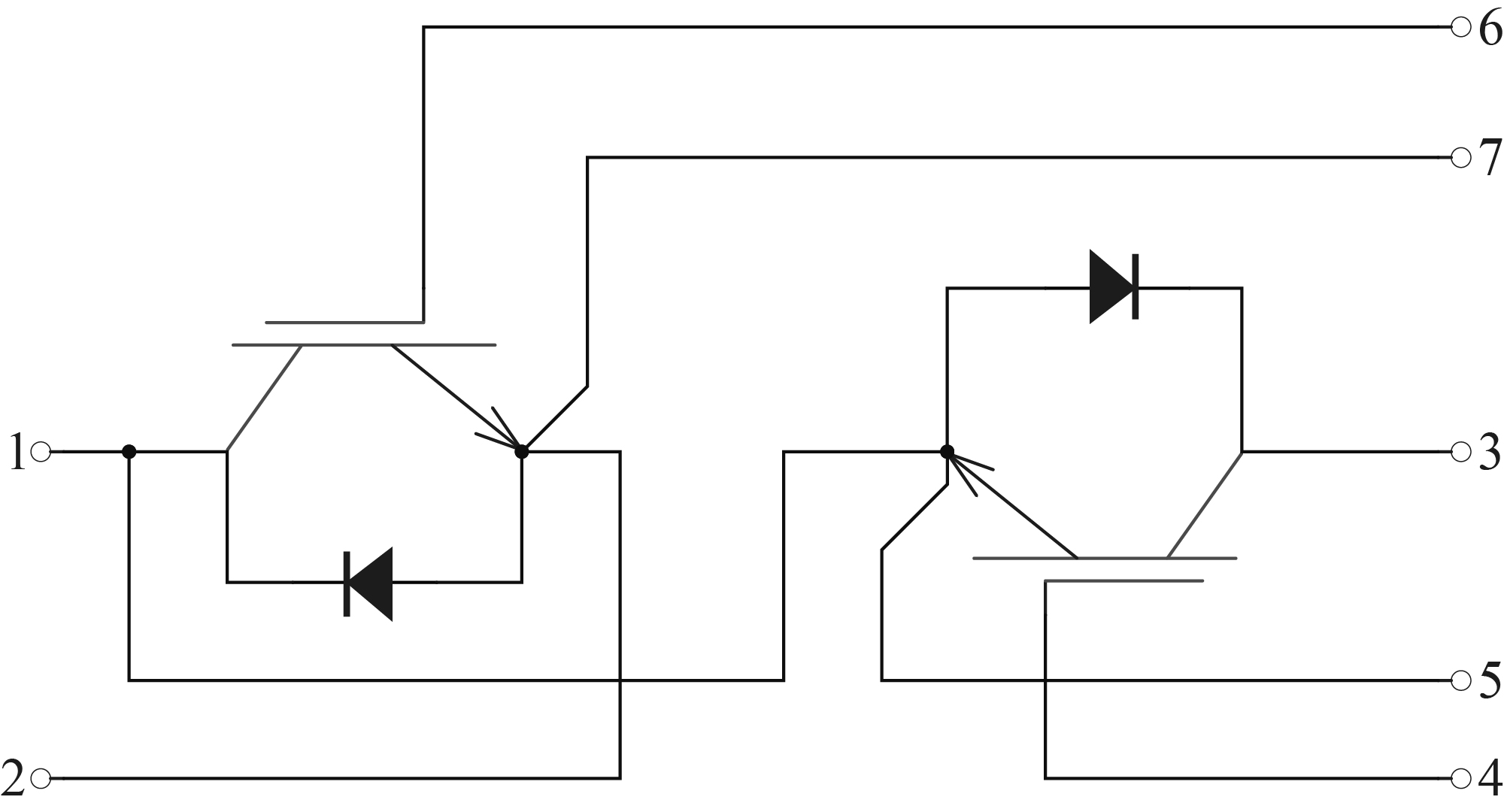

Circuit
N.G (g)160.0
ApplicationMotor Drives，Servo Drives
